Integrating 3rd Party Native SDKs Part III

This is the third and final instalment in a series on integrating 3rd party native SDKs in your Codename One application. If you missed the first two chapters, I recommend you begin with part one before reading this tutorial, as it provides much needed context for the procedures described here.

Part 2: Implementing the iOS Native Code

Part 1 of this tutorial focused on the Android native integration. Now we’ll shift our focus to the iOS implementation.

After selecting "Generate Native Interfaces" for our "MobihelpNative" class, you’ll find a native/ios directory in your project with the following files:

These files contain stub implementations corresponding to our MobihelpNative class.

We make use of the API docs to see how the native SDK needs to be wrapped. The method names aren’t the same. E.g. instead of a method showFeedback(), it has a message -presentFeedback:

We more-or-less just follow the iOS integration guide for wrapping the API. Some key points include:

  1. Remember to import the Mobihelp.h file in your header file:

    #import "Mobihelp.h"
  2. Similar to our use of runOnUiThread() in Android, we will wrap all of our API calls in either dispatch_async() or dispatch_sync() calls to ensure that we are interacting with the Mobihelp API on the app’s main thread rather than the Codename One EDT.

  3. Some methods/messages in the Mobihelp SDK require us to pass a UIViewController as a parameter. In Codename One, the entire application uses a single UIViewController: CodenameOne_GLViewController. You can obtain a reference to this using the [CodenameOne_GLViewController instance] message. We need to import its header file:

    #import "CodenameOne_GLViewController.h"

    As an example, let’s look at the showFeedback() method:

    -(void)showFeedback{

        dispatch_async(dispatch_get_main_queue(), ^{
            [[Mobihelp sharedInstance] presentFeedback:[CodenameOne_GLViewController instance]];
        });
    }

Using the MobihelpNativeCallback

We described earlier how we created a static method on the MobihelpNativeCallback class so that native code could easily fire a callback method. Now let’s take a look at how this looks from the iOS side of the fence. Here is the implementation of getUnreadCountAsync():

-(void)getUnreadCountAsync:(int)param{
    dispatch_async(dispatch_get_main_queue(), ^{
        [[Mobihelp sharedInstance] unreadCountWithCompletion:^(NSInteger count){
            com_codename1_freshdesk_MobihelpNativeCallback_fireUnreadUpdatesCallback___int_int_int(CN1_THREAD_GET_STATE_PASS_ARG param, 3 /*SUCCESS*/, count);
        }];
    });
}

In our case the iOS SDK version of this method is +unreadCountWithCompletion: which takes a block (which is like an anonymous function) as a parameter.

The callback to our Codename One function occurs on this line:

com_codename1_freshdesk_MobihelpNativeCallback_fireUnreadUpdatesCallback___int_int_int(CN1_THREAD_GET_STATE_PASS_ARG param, 3 /*SUCCESS*/, count);

Some things worth mentioning here:

  1. The method name is the result of taking the FQN (com.codename1.freshdesk.MobihelpNativeCallback.fireUpdateUnreadUpdatesCallback(int, int, int)) and replacing all . characters with underscores, suffixing two underscores after the end of the method name, then appending _int once for each of the int arguments.

  2. We also need to import the header file for this class:

    #import "com_codename1_freshdesk_MobihelpNativeCallback.h"

Bundling Native iOS SDK

Now that we have implemented our iOS native interface, we need to bundle the Mobihelp iOS SDK into our project. There are a few different scenarios you may face when looking to include a native SDK:

  1. The SDK includes .bundle resource files. In this case, just copy the .bundle file(s) into your native/ios directory.

  2. The SDK includes .h header files. In this case, just copy the .h file(s) into your native/ios directory.

  3. The SDK includes .a files. In this case, just copy the .a file(s) into your native/ios directory.

  4. The SDK includes .framework files. This is a bit tricker as Codename One doesn’t support simply copying the .framework files inside your project. In this case you need to perform the following:

  5. Right click on the .framework file (if you are using OS X) and select "Show Package Contents".

  6. Find the "binary" file within the framework, and copy it into your native/ios directory - but rename it libXXX.a (where XXX is the name of the binary).

  7. Copy all .h files from the framework into your native/ios directory.

  8. Update all #import statements in the headers from #import <FrameworkName/FileName.h> format to simply #import "FileName.h"

The FreshDesk SDK doesn’t include any .framework files, so we don’t need to worry about that last scenario. We simply download the iOS SDK, copy the libFDMobihelpSDK.a, Mobihelp.h. MHModel.bundle, MHResources.bundle, and MHLocalization/en.proj/MHLocalizable.strings into native/ios.

Troubleshooting iOS

If you run into problems with the build, you can select "Include Sources" in the build server to download the resulting Xcode Project. You can then debug the Xcode project locally, make changes to your iOS native implementation files, and copy them back into your project once it is building properly.

Adding Required Core Libraries and Frameworks

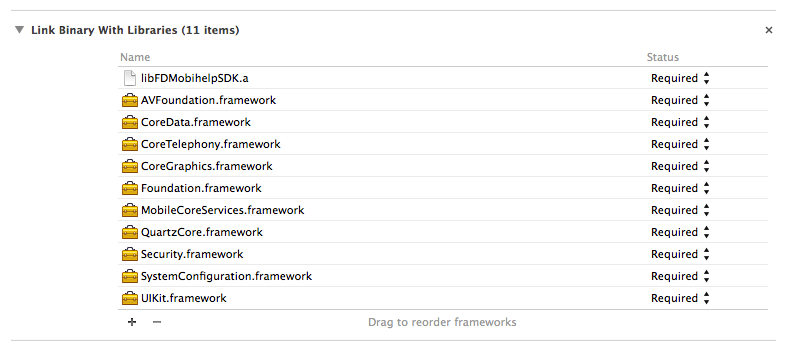

The iOS integration guide for the FreshDesk SDK lists the following core frameworks as dependencies:

12c5303e 620c 11e5 9dbb bcb4bebc0c87

We can add these dependencies to our project using the ios.add_libs build hint. E.g.

65e31df8 620c 11e5 87ff 6b926a3f2090

I.e. we just list the framework names separated by semicolons. Notice that my list in the above image doesn’t include all of the frameworks that they list because many of the frameworks are already included by default (I obtained the default list by simply building the project with "include sources" checked, then looked at the frameworks that were included).

Part 3 : Packaging as a .cn1lib

During the initial development, I generally find it easier to use a regular Codename One project so that I can run and test as I go. But once it is stabilized, and I want to distribute the library to other developers, I will transfer it over to a Codename One library project. This general process involves:

  1. Create a Codename One Library project.

  2. Copy the .java files from my original project into the library project.

  3. Copy the native directory from the original project into the library project.

  4. Copy the relevant build hints from the original project’s codenameone_settings.properties file into the library project’s codenameone_library_appended.properties file.

In the case of the FreshDesk .cn1lib, I modified the original project’s build script to generate and build a libary project automatically. But that is beyond the scope of this tutorial.

Summary

After walking through this tutorial, you should have all the required knowledge to wrap native SDKs into your own codename one libraries. Wrapping native SDKs is a really easy way to extend the capabilities of the Codename One platform. If you plan to create such a library, I encourage you to blog about it and post your experiences to the Codename One google group. We’re always interested in hearing how the community is using Codename One, and we’re especially interested in hearing about the creative ways that you are extending it.
