Running Android applications

Every value type: strings (with formatting arguments and Android’s quoting and escaping rules), plurals, string and integer arrays, colors, color state lists, dimensions in every unit, integers, booleans, fractions and ids.

Styles and themes, including parent inheritance through parent= and dotted names, theme attributes (?attr/colorPrimary), style= on views, default widget styles from the theme and text appearances.

Configuration qualifiers: locale and region, layout direction, smallest width, width and height, orientation, night mode, density buckets and API level. The best match for the device is chosen with Android’s precedence rules and is re-evaluated when the device rotates or switches to dark mode.

Drawables: PNG and JPEG images scaled from their density bucket, nine-patches, vector drawables (<vector> with groups, clip paths and theme tints), <shape>, <selector>, <layer-list>, <inset>, <ripple>, <bitmap> and <color>.

Fonts in res/font and files in res/raw and assets/.

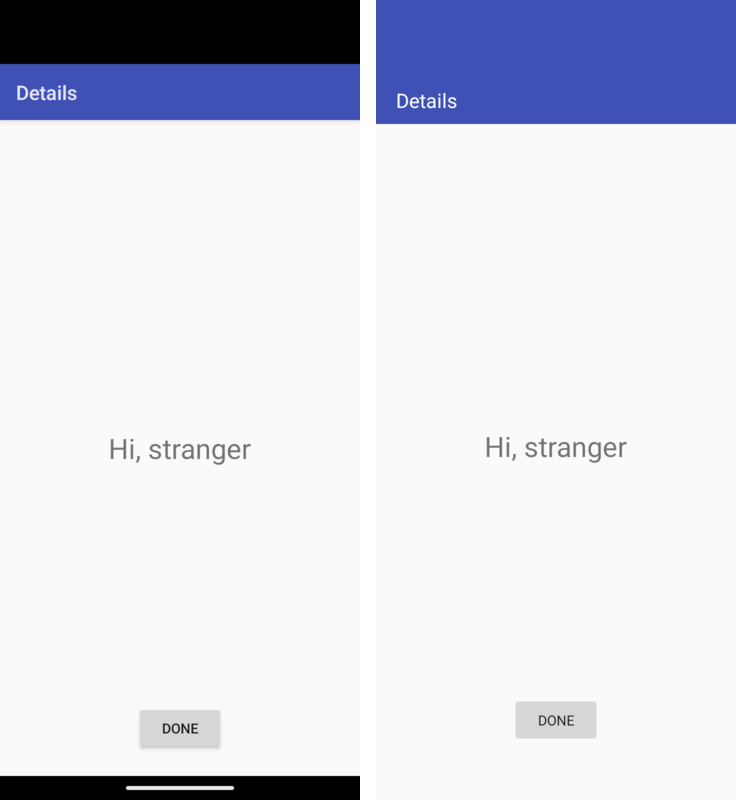

Activities with the complete lifecycle, explicit intents with extras, startActivityForResult, the back stack and finish(), implicit intents for web pages, phone numbers, mail, text messages and sharing, and configuration changes: an activity that doesn’t declare android:configChanges is recreated with its saved state, as on Android.

The action bar with the options menu and its overflow, PopupMenu, PopupWindow and ListPopupWindow.

Fragments: Fragment, FragmentManager and transactions with the back stack, ListFragment, DialogFragment, <fragment> in layouts, child fragment managers and fragments' option menus. ListActivity is supported too.

Layout inflation with <include>, <merge>, <ViewStub>, custom views (constructed with their AttributeSet), android:theme on views and android:onClick.

Views drawn and measured as on Android: View, ViewGroup, TextView, Button, EditText, AutoCompleteTextView, ImageView, ImageButton, LinearLayout, RelativeLayout, FrameLayout, TableLayout, GridLayout, ScrollView, HorizontalScrollView, Space, CheckBox, RadioButton and RadioGroup, Switch, ToggleButton, ProgressBar, SeekBar, RatingBar, NumberPicker, DatePicker, TimePicker, WebView, and custom views that override onMeasure, onLayout and onDraw with Canvas, Paint, Path and Matrix.

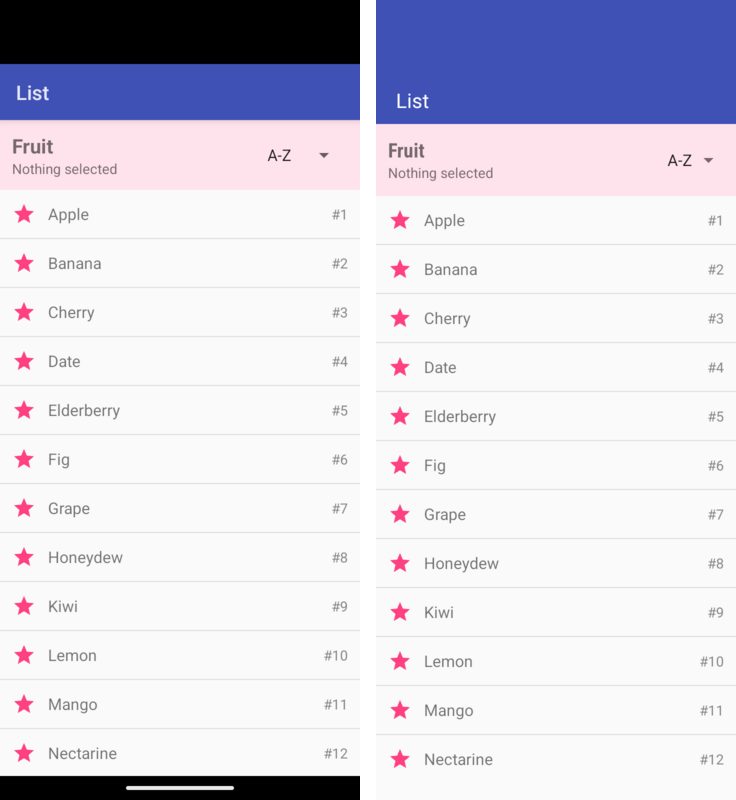

Lists and adapters: ListView, GridView and Spinner with view recycling, ArrayAdapter, BaseAdapter, SimpleAdapter, CursorAdapter and SimpleCursorAdapter.

Touch input dispatched down the view tree, so onInterceptTouchEvent, onTouchEvent and touch listeners behave as written, and the back key.

Dialogs: AlertDialog, DatePickerDialog, TimePickerDialog, ProgressDialog and Toast.

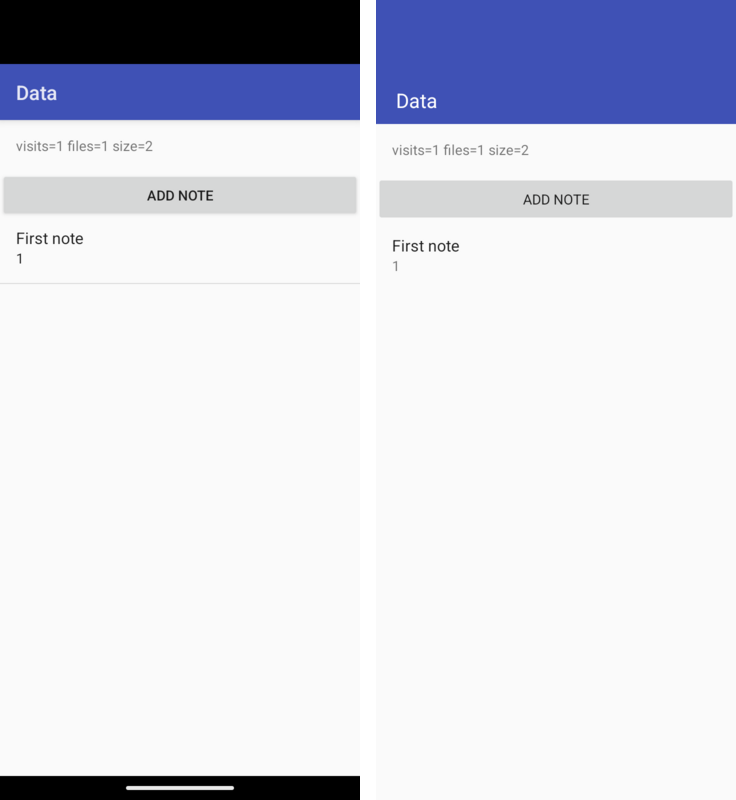

Data and files: SQLiteOpenHelper, SQLiteDatabase, cursors and ContentValues over the platform’s SQLite, SharedPreferences, the application’s private directories (getFilesDir(), getCacheDir(), openFileOutput()), and java.io.File with the file streams, readers and writers.

Handler and Looper, Bundle, Uri, AssetManager and BitmapFactory.

Animation: view animations from res/anim (alpha, translate, scale, rotate and set) with startAnimation, layout animations, the framework and XML interpolators, ViewFlipper and the switchers, and property animation with view.animate(), ValueAnimator, ObjectAnimator, AnimatorSet and res/animator resources.

XML: getResources().getXml() returns a pull parser over the compiled resource, and Xml.newPullParser() and Xml.newSerializer() read and write XML text.

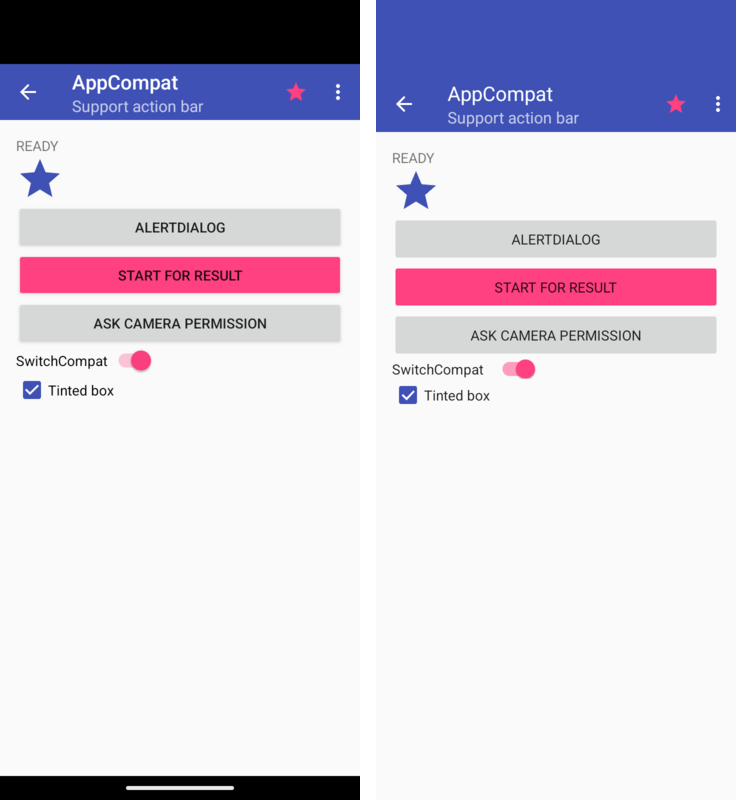

AppCompat: AppCompatActivity with getSupportActionBar() and setSupportActionBar(), the Toolbar widget with its navigation button, title, subtitle, logo, action buttons and overflow menu, AlertDialog, SwitchCompat, and the AppCompat versions of the framework widgets, which an AppCompat activity inflates in place of the framework tags so that app:srcCompat, app:tint, app:backgroundTint and app:buttonTint apply. The Theme.AppCompat themes, including the DayNight, NoActionBar and DarkActionBar variants and the ThemeOverlay.AppCompat overlays, and AppCompatDelegate.setDefaultNightMode().

androidx.activity: ComponentActivity, OnBackPressedDispatcher and OnBackPressedCallback, and the Activity Result API with the StartActivityForResult, RequestPermission, RequestMultiplePermissions and GetContent contracts.

androidx.core: ContextCompat, ResourcesCompat, ViewCompat, WindowCompat, WindowInsetsCompat, ActivityCompat, DrawableCompat, TextViewCompat, ImageViewCompat and HandlerCompat.

Fragments: androidx.fragment.app.Fragment with its own lifecycle and a separate one for its view (getViewLifecycleOwner()), FragmentActivity and getSupportFragmentManager(), transactions and the back stack, which the back key pops before the activity handles it, FragmentContainerView with android:name, <fragment> tags, DialogFragment, ListFragment, fragment results (setFragmentResult() and setFragmentResultListener()), the Activity Result API from a fragment, and FragmentFactory. AppCompatActivity is a FragmentActivity.

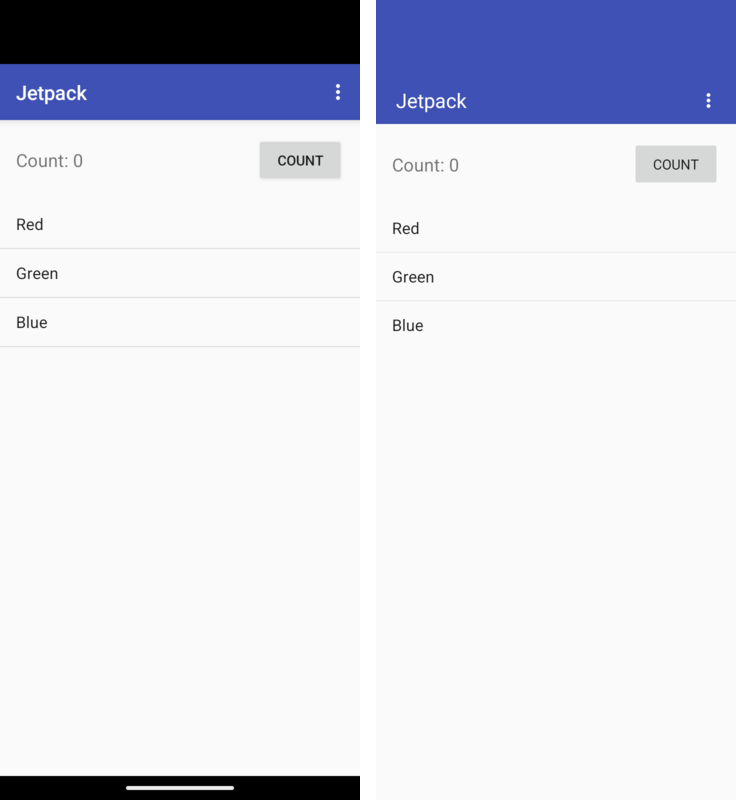

androidx.lifecycle: Lifecycle, LifecycleOwner, LifecycleRegistry, DefaultLifecycleObserver, LifecycleEventObserver and ProcessLifecycleOwner; ViewModel, AndroidViewModel and ViewModelProvider, with view models of an activity or a fragment surviving a configuration change; LiveData, MutableLiveData, MediatorLiveData and Transformations; and SavedStateHandle.

androidx.annotation.

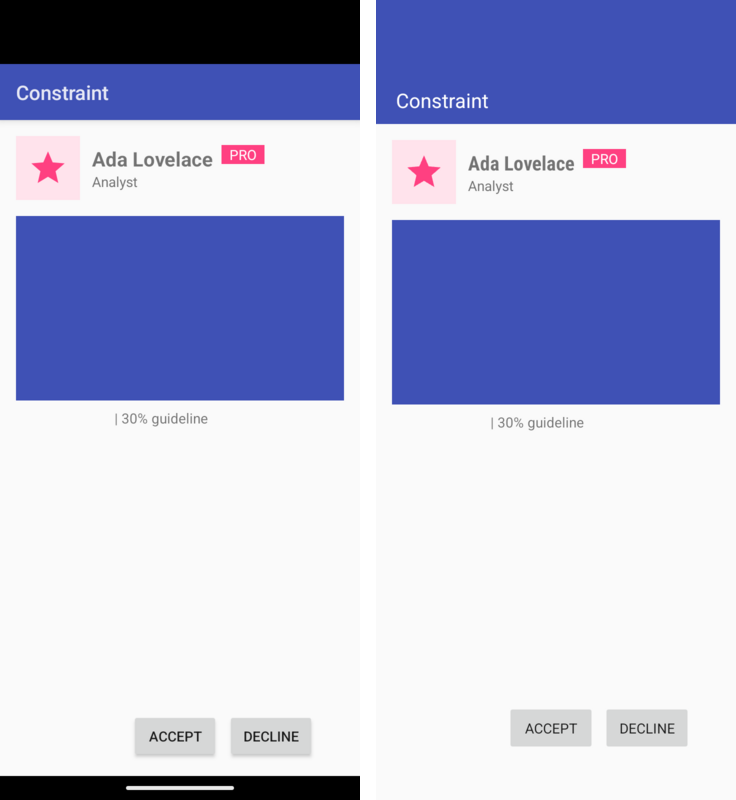

ConstraintLayout: ConstraintLayout with every layout_constraint attribute — edges, baselines, circular positioning, bias, chains (spread, spread inside, packed and weighted), match-constraint sizes with their minimum, maximum and fraction of the parent, dimension ratios and gone margins — Guideline, Barrier, Group, Placeholder, Flow, Layer and ConstraintSet. Layouts are solved by ConstraintLayout’s own solver, so views land where they do on Android.

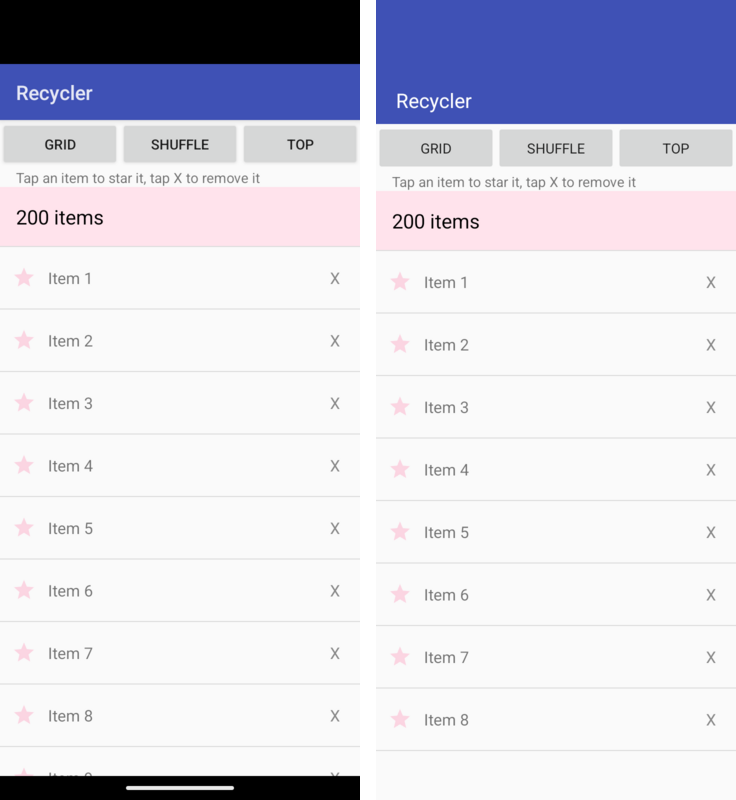

RecyclerView: view recycling with the shared RecycledViewPool, the view cache and stable ids; LinearLayoutManager (vertical and horizontal, reverseLayout, stackFromEnd, scrollToPositionWithOffset()), GridLayoutManager with SpanSizeLookup, and StaggeredGridLayoutManager, also set through app:layoutManager; touch scrolling and flings, smoothScrollToPosition() and LinearSmoothScroller; every adapter notification, payloads included; ItemDecoration and DividerItemDecoration; DefaultItemAnimator; DiffUtil, ListAdapter and AsyncListDiffer; ItemTouchHelper for swipe-to-dismiss and drag-to-reorder; and LinearSnapHelper and PagerSnapHelper.

ViewPager2 with a RecyclerView.Adapter, horizontal or vertical, OnPageChangeCallback, setCurrentItem(), page transformers and MarginPageTransformer.

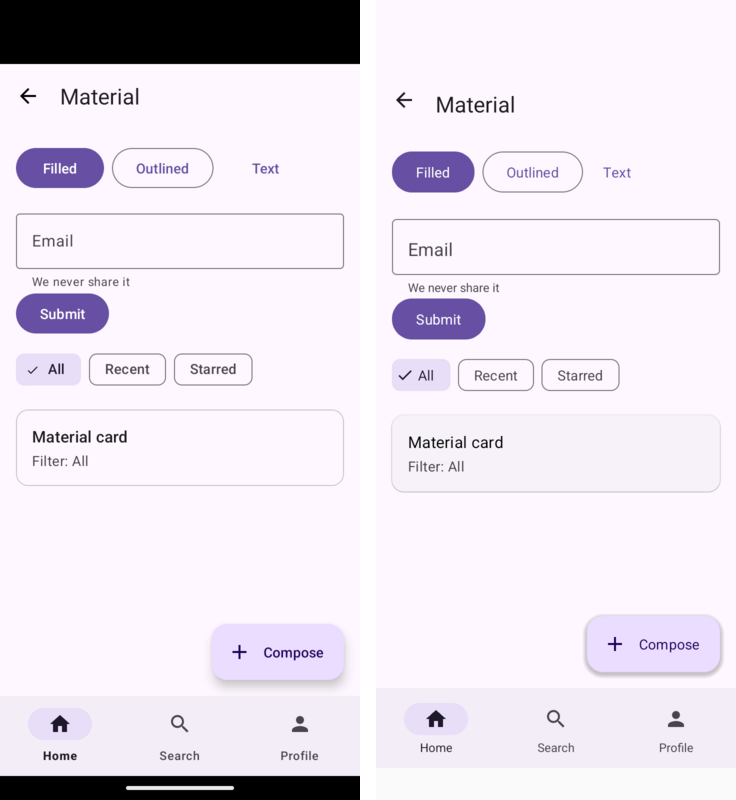

Material Components: the Theme.MaterialComponents and Theme.Material3 themes (light, dark and DayNight, with or without an action bar) with the library’s default color roles, type scale and corner shapes, and the ThemeOverlay variants. Under either theme a <Button> inflates as a MaterialButton and a <CheckBox>, <RadioButton>, <TextView> or <AutoCompleteTextView> as its Material version, as they do on Android. The widgets are MaterialButton (icon, corner radius, stroke, toggling through MaterialButtonToggleGroup), MaterialCardView and AndroidX CardView, FloatingActionButton and ExtendedFloatingActionButton, TextInputLayout with TextInputEditText (floating label, helper text, error, counter, filled and outlined boxes, the password toggle and clear-text icons, and the exposed drop-down menu), Chip and ChipGroup, BottomNavigationView, TabLayout with TabLayoutMediator, MaterialToolbar and AppBarLayout, Snackbar, MaterialAlertDialogBuilder, MaterialSwitch and SwitchMaterial, MaterialCheckBox and MaterialRadioButton, Slider, LinearProgressIndicator and CircularProgressIndicator, BottomSheetDialog with BottomSheetBehavior, and MaterialDivider.

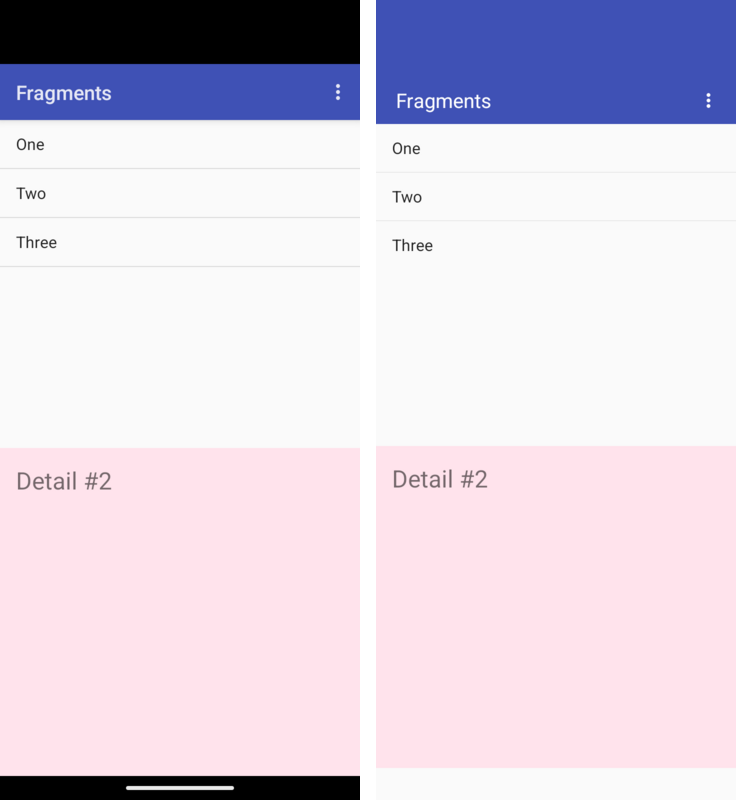

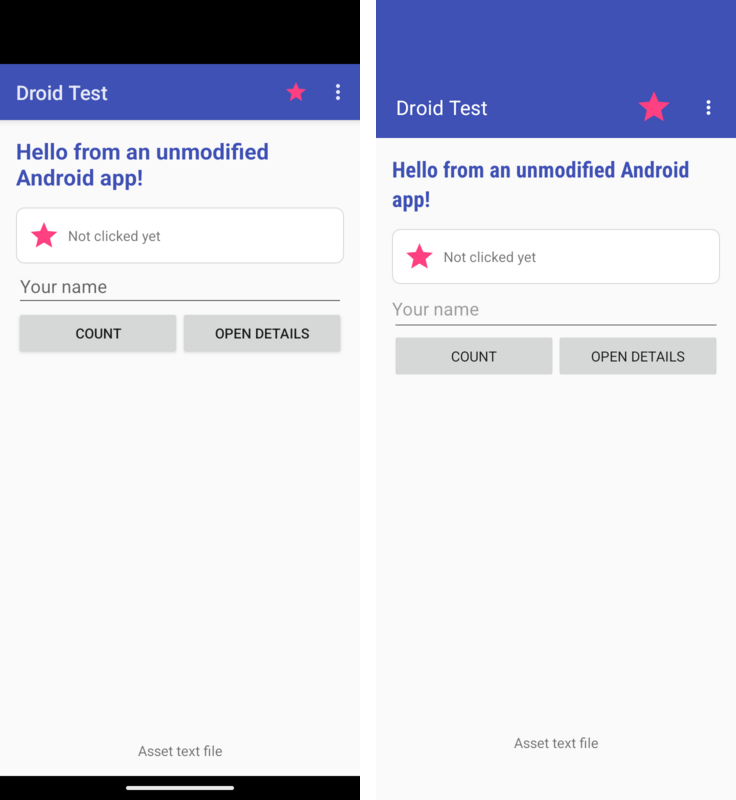

On the left, the black band at the top is the emulator’s display cutout; a Codename One application paints its toolbar color under the status bar.

Codename One’s bold face on Android is Roboto Condensed, so bold text sets narrower and wraps later.

The native build targets API 34, so its window keeps the classic layout the sample was written for. From API 35, Android draws such an application edge-to-edge unless it handles the window insets itself.

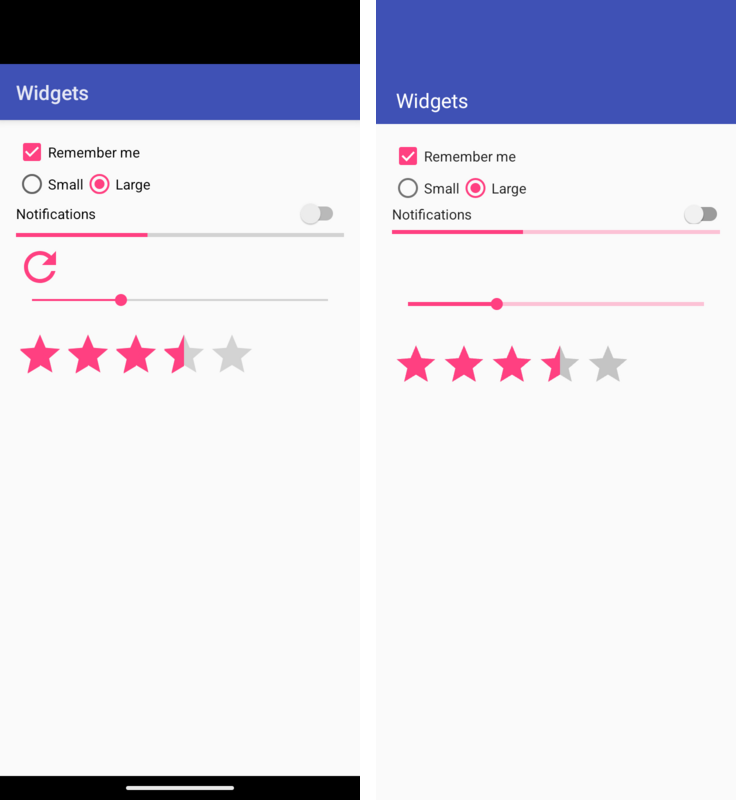

The screenshot test hides the indeterminate progress spinner on the widgets screen, because it never stops moving.

Parcel is an in-process value container, not Android’s serialization or IPC format. Positions count values rather than bytes. writeParcelable() and readParcelable() retain and return the same object; they don’t invoke writeToParcel() or CREATOR. Typed Parcelable lists also retain their elements. Code that depends on serialization making a snapshot, creator-side validation, or restoring state after process death needs an explicit storage or copy implementation.

SQLite uses one Codename One database connection. A competing thread’s operations can throw SQLiteDatabaseLockedException while a transaction is open; Android’s connection-pool waiting behavior isn’t implemented. Serialize database work through one worker when sharing a database across tasks. Full Android SQLite concurrency parity is outside this release’s scope.

Switching only a locale’s script, such as zh-Hans to zh-Hant with the same region, updates resource selection but doesn’t notify or recreate existing activities. Already-inflated text and layouts can retain the old script until the activity is recreated. Automatic handling of this live configuration change is deferred.

Configuration changes don’t call Application.onConfigurationChanged(). Refresh shared resource-dependent state from an activity’s onConfigurationChanged() callback, or from onResume() after recreation.

The application’s own code must avoid the JDK classes Codename One doesn’t provide; the build’s bytecode check reports them. The runtime provides the java.io classes Android code uses most (File, the file streams, readers and writers, the buffered streams and PrintWriter).

Code that loads classes by name (Class.forName, reflection-based libraries) doesn’t run on iOS, with or without this runtime.

PackageManager.queryIntentActivities() exposes at most the activity the runtime would launch. It doesn’t enumerate every matching handler and uses the default-category restriction even without MATCH_DEFAULT_ONLY. Apps that present their own handler chooser need an explicit application registry.

A stopped activity’s attached views can still report VISIBLE from getWindowVisibility(). Pause rendering and other view work from the activity’s onStop() callback, then resume it from onStart(), rather than waiting for a window-visibility callback.

BitmapFactory.Options.inBitmap isn’t used as a decode target. Decoding allocates a new bitmap; applications that depend on bitmap pooling should leave inBitmap unset and manage the old bitmap themselves.

Canvas.setBitmap(null) unbinds the target and clears its dimensions and drawing state. Bind a live bitmap or view graphics before calling drawing or state methods on that canvas; unbound drawing isn’t supported.

Give sibling fragments of the same class stable, distinct IDs or tags when using registerForActivityResult(). Their launcher keys otherwise collide, and an outstanding result can be lost after activity recreation.

Register or unregister SavedStateRegistry providers outside a provider’s saveState() callback. Changing the registry during its save pass can abort state collection.

Locale resources use exact region matches and language-only fallbacks. They don’t rank translations from other regions. Ship a language-only directory, such as values-fr, for text shared across regions.

LayoutInflater.Filter isn’t supported by compiled layout factories. Installing a non-null filter throws UnsupportedOperationException before inflation. Applications needing a class restriction must control their compiled layouts and factories.

DigitsKeyListener selects the keyboard input type but doesn’t enforce a custom accepted-character set. Use an explicit InputFilter and validate submitted text when the application requires a restricted alphabet.

Gradle recompiles all Java sources in an imported Android project after a source edit, because relocation rewrites the compiler output. Unchanged builds still use Gradle’s up-to-date checks.

Content providers, services, broadcast intents from the system and notifications through NotificationManager aren’t available; use the corresponding Codename One APIs through native interfaces or directly.

ViewModelProvider creates view models without reflection: the build registers every public, concrete ViewModel class whose public constructor takes nothing, an Application, a SavedStateHandle, or an Application and a SavedStateHandle. A view model with another constructor needs a ViewModelProvider.Factory of the application’s own, as on Android.

The Kotlin extensions of the -ktx libraries (by viewModels(), lifecycleScope, the commit { } transaction builder) and coroutines aren’t provided; use the Java API they wrap.

An observer added to a Lifecycle hears events through DefaultLifecycleObserver or LifecycleEventObserver; methods annotated with @OnLifecycleEvent aren’t called, because there’s no reflection.

System insets are always zero: Codename One lays an application out inside the safe area itself, so edge-to-edge drawing has no effect.

ListView and GridView don’t automatically restore scroll position or checked items after activity recreation. Save the first visible position and checked item keys in the activity state, then restore selection and checks after attaching and populating the adapter. Stable item keys belong to the application; positions alone may change when its data changes.

RecyclerView doesn’t defer a saved layout anchor for an empty adapter. PREVENT and PREVENT_WHEN_EMPTY restoration policies don’t gate that restore, so an empty first layout can consume the anchor. If data arrives later, save a stable item key or position in activity state and restore the scroll position after the adapter contains the items.

Drawable selectors keep the window-focused appearance when a window loses focus. Applications needing a different appearance can update their drawables in onWindowFocusChanged().

Apply menu icon tint with setIconTintList() after assigning the icon, and repeat after replacing it. A tint set before the icon, or on a previous icon, isn’t retained for the new drawable.

ObjectAnimator finds a property by name only on the framework’s own classes (view transforms, colors, progress, drawable alpha and level), because there is no reflection. Animate a property of your own class through an android.util.Property instead.

TimeAnimator doesn’t honor a nonzero start delay. Leave its start delay at zero and schedule the start() call when delayed updates are needed.

An anchored PopupWindow keeps its position until update() is called. Applications must update or dismiss it when its anchor scrolls or moves. Automatic anchor tracking is deferred.

Options menus use their last prepared contents. Call invalidateOptionsMenu() after changing state that affects menu items; opening the overflow alone doesn’t prepare the menu again.

Overloads that differ only by Closeable and AutoCloseable can’t survive remapping to the Codename One runtime. The build rejects these collisions with the class and method name; rename the overload or use one signature.

XML android:onClick handlers must be declared in application output classes. The dispatcher doesn’t discover methods inherited only from dependency JARs. Add a public forwarding method in the application activity, or register an explicit click listener in code. Dependency-wide handler discovery is deferred.

A subclass of Animation or Animator that the application wrote must override clone() to be copied, for the same reason.

MotionLayout isn’t available. A ConstraintSet custom attribute sets the standard view and text properties (colors, alpha, rotation, scale, translation, text, text size, visibility and similar); a setter on a class of the application’s own isn’t called, because it’s found by reflection on Android.

Methods a WebView exposes to JavaScript with addJavascriptInterface return a JavaScript promise rather than the value, and the object is available once the page has loaded rather than during its inline scripts.

RecyclerView item animations are the simple kind: items that move slide, new items fade in and removed items fade out, but an item that a change moves out of view doesn’t slide out, and there are no predictive animations. ListAdapter and AsyncListDiffer compute the difference when the list is submitted, on the UI thread, and the scroll ends without an overscroll glow or a fast-scroll thumb.

CoordinatorLayout isn’t available, so a layout_behavior (a scrolling app bar, a button that hides on scroll) has no effect; a Snackbar appears at the bottom of the activity’s content. BottomSheetBehavior drives the sheet of a BottomSheetDialog only. Material elevation shadows are drawn by the runtime and are softer than the platform’s, a card doesn’t clip its children to its rounded corners, and badges, centered toolbar titles and the prefixText and suffixText of a text field aren’t shown; the build’s compatibility report lists the ones an application uses.
